Creating or Editing a Tez View Instance

Depending on whether you must create a new Tez View instance for a manually deployed cluster or modify an Ambari-created Tez View, using one of the following procedures:

To modify a Tez View instance on an Ambari-managed cluster:

Steps

Browse to the Ambari Admin interface.
Click Views and expand the Tez View.
On the Create Instance page, change the appropriate configuration parameters.
Select Local Ambari-Managed Cluster:

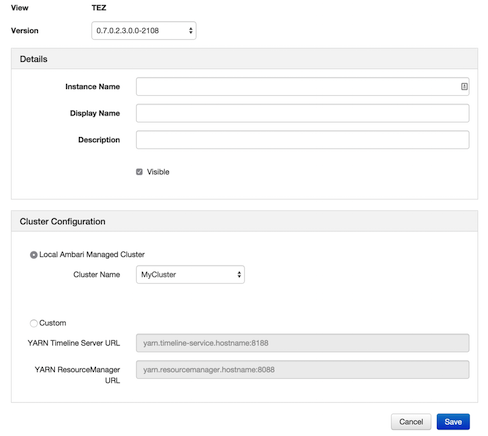

Figure 2.13. Tez View Create Instance Page

Important
Secure clusters that use wire encryption (SSL/TSL) cannot use the Local Ambari Managed Cluster option. Instead you must configure the view manually.
Click Save, grant Permissions on the view , then click Go to instance to use the view.

To create a new Tez View instance for a manually-deployed cluster:

Steps

Browse to the Ambari Admin interface.
Click Views, expand the Tez View, and click Create Instance.
On the Create Instance page, select the Version.
Enter the Details (required). The Instance Name appears in the URI, the Display Name appears in the Views drop-down list, and the Description helps multiple users identify the view.

Scroll down to the Cluster Configuration, verify that Custom is checked and enter the following values, which tell the Tez View how to access resources in the cluster:

Table 2.6. Cluster Configuration Values for Tez View in Ambari

Property	Value
YARN Timeline Server URL (required)	The URL to the YARN Application Timeline Server, used to provide Tez information. Typically, this is the `yarn.timeline-service.webapp.address` property that is specified in the `etc/hadoop/conf/yarn-site.xml`. When you enter the value in the view definition, pre-pend "http://" to the value you find in the yarn-site.xml file. For example, `http://<timeline server host>:8188` For wire encryption-enabled clusters: Set this based on the value of `yarn.timeline-service.webapp.https.address` in `yarn-site.xml` When you enter the value in the view definition, pre-pend "https://" to the value. For example, `https://<timeline server host>:8190`
YARN ResourceManager URL (required)	The URL to the YARN ResourceManager, used to provide YARN Application data. Typically, this is the `yarn.resourcemanager.webapp.address` property that is specified in the `etc/hadoop/conf/yarn-site.xml`. When you enter the value in the view definition, pre-pend "http://" to the value you find in the yarn-site.xml file. For example, `http://<resourcemanager host>:8088` Important: If YARN ResourceManager HA is enabled, provide a comma-separated list of URLs for all the Resource Managers. For wire encryption-enabled clusters: Set this based on the value of `yarn.resourcemanager.webapp.https.address` in `yarn-site.xml` When you enter the value in the view definition, pre-pend "https://" to the value. For example, `https://<resourcemanager host>:8090`

Property

Value

YARN Timeline Server URL (required)

The URL to the YARN Application Timeline Server, used to provide Tez information. Typically, this is the yarn.timeline-service.webapp.address property that is specified in the etc/hadoop/conf/yarn-site.xml.

When you enter the value in the view definition, pre-pend "http://" to the value you find in the yarn-site.xml file. For example, http://<timeline server host>:8188

For wire encryption-enabled clusters:

Set this based on the value of yarn.timeline-service.webapp.https.address in yarn-site.xml

When you enter the value in the view definition, pre-pend "https://" to the value. For example, https://<timeline server host>:8190

YARN ResourceManager URL (required)

The URL to the YARN ResourceManager, used to provide YARN Application data. Typically, this is the yarn.resourcemanager.webapp.address property that is specified in the etc/hadoop/conf/yarn-site.xml.

When you enter the value in the view definition, pre-pend "http://" to the value you find in the yarn-site.xml file. For example, http://<resourcemanager host>:8088

Important: If YARN ResourceManager HA is enabled, provide a comma-separated list of URLs for all the Resource Managers.

For wire encryption-enabled clusters:

Set this based on the value of yarn.resourcemanager.webapp.https.address in yarn-site.xml

When you enter the value in the view definition, pre-pend "https://" to the value. For example, https://<resourcemanager host>:8090

Click Save and grant Permissions on the view.
At the top of the view instance configuration page, click Go to instance.
When your browser is at the view instance page, copy the URL for the Tez View from your browser address bar:

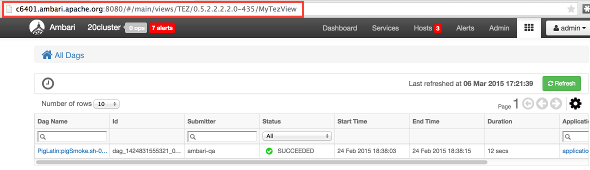

Figure 2.14. Tez View Instance Page
In tez-site.xml, specify the URL that you copied in Step 8 as the value for the tez.tez-ui.history-url.base property, and save the file.
Restart the HiveServer2 daemon to make sure that your changes to tez-site.xml take effect.

	Important
	If your cluster is configured for Kerberos, you must set up Ambari Server for Kerberos for the Tez View to access the ATS component.

More Information

User Permissions for Tez Views

Using Tez View

Kerberos Setup for Tez View

	Important
	Secure clusters that use wire encryption (SSL/TSL) cannot use the Local Ambari Managed Cluster option. Instead you must configure the view manually.
